ultrastudio recorder 3g

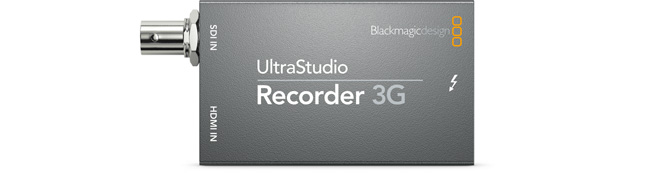

UltraStudio Recorder 3G

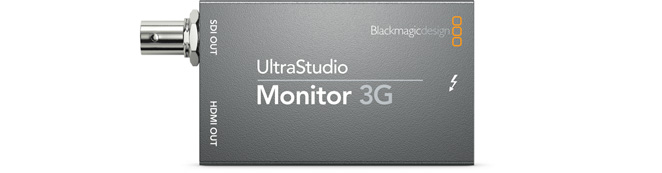

UltraStudio Monitor 3G

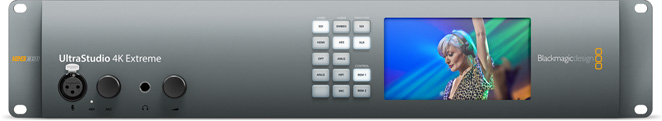

UltraStudio 4K Extreme 3
0 out of 5
( There are no reviews yet. )

$15,316.00

UltraStudio Recorder 3G
Smallest 3G-SDI and HDMI video Capture for
Thunderbolt 3 Laptop or Desktop Computer.
Ultra Studio Recorder Supports 10 bit uncompressed and
Compressed capture from popular editing software such
as DaVinci Resolve, Final Cut pro, Avid Media Composer and
Adobe Premiere Pro CC.

Connections

SDI Video Inputs

1 x 10-bit SD/HD switchable

SDI Rates

270Mb, 1.5G, 3G

SDI Audio Inputs

16 Channels embedded in SD/HD

HDMI Video Inputs

1 x HDMI 2.0 type A connector

HDMI Audio Inputs

8 Channels embedded in SD/HD

Computer Interface

Thunderbolt™ 3 (Mac OS, Windows and Linux)

UltraStudio Recorder 3G

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.



Category: Tag:

Description

Warranty 1 year

Reviews

There are no reviews yet.
